ALL IN ONE DC CHARGING STATION

Iskraemeco UrbanBox

The UrbanBox is a compact all-in-one DC charging station delivering 40 kW of power. Featuring a 7” sunlight-readable display, MID DC Meter, and single CCS2 connection, it ensures efficient and reliable EV charging. Designed for both indoor and outdoor installations (IP54, IK10), it offers OCPP 1.6j compatibility, optional Plug&Charge support, and optional branding.
Contact Sales
Charge any car
Convenient and efficient charging for any car.
Weather proof
Resistant to harsh conditions.
Configurations
30 kW or 40kW options for every usescase.
Tried & tested
Charge with ease and confidence.
NEW ERA OF EV CHARGING

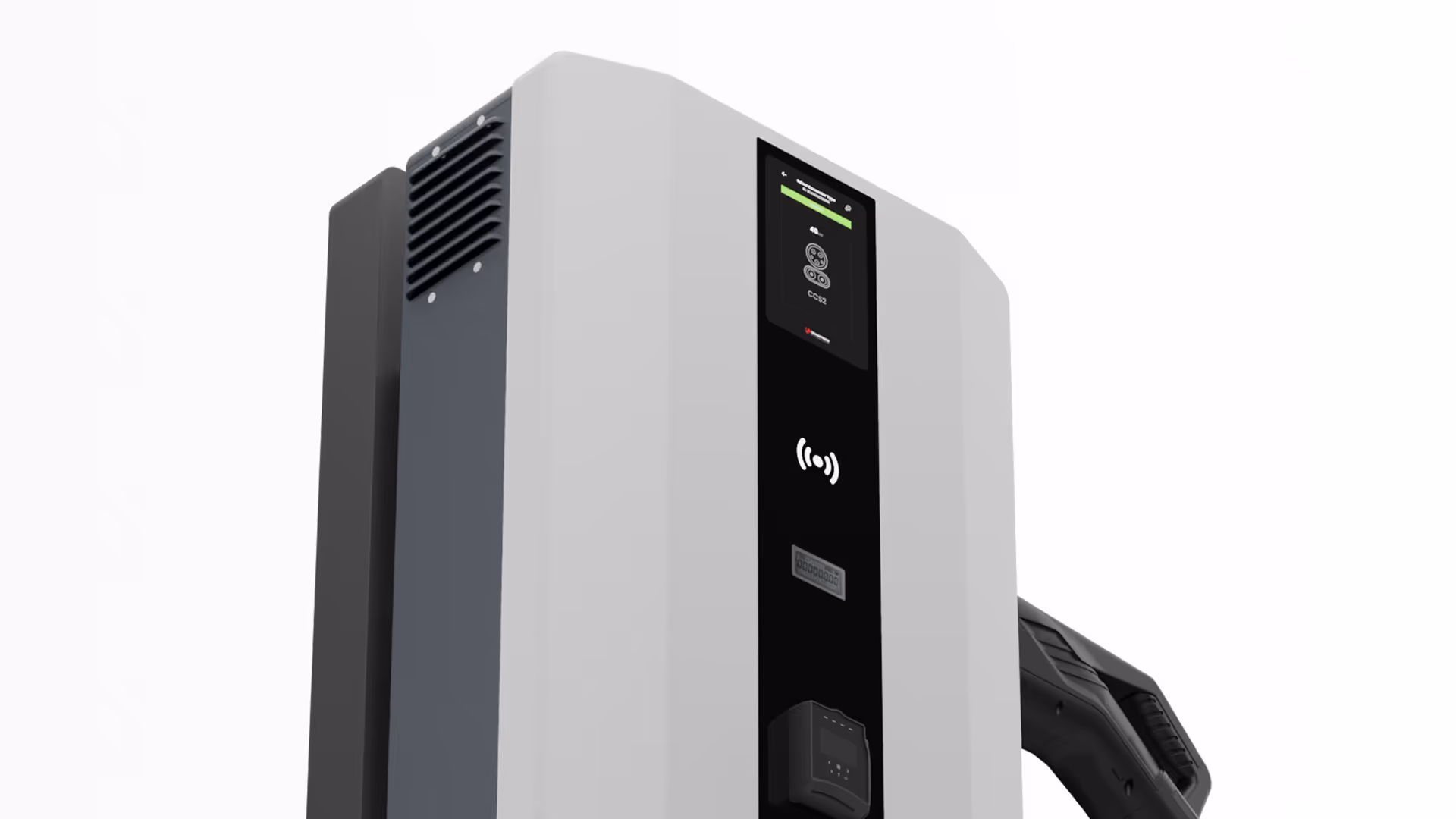

About UrbanBox

The UrbanBox series is engineered to seamlessly blend into both public and private locations, including urban areas, shopping malls, parking garages, airports, fuel stations, corporate campuses, and community park grounds. Its intelligent features and functionalities elevate the user and/or operator experience across these diverse settings.

Contact sales
INSTALLMENTS

Installation Options

Lörem ipsum benade suregt europlada, antilungen av omyss att kyrktrappsbröllop. Fede valig. Ekostat vanar om ditivis fastän beseren till makroling fasam.
OPTION 1

Next to wall

OPTION 2

Stand-alone

YOUR BRAND

Whitelabel

A personalisation option, where we make a custom front glass printing of the charging station according to the brand of your company.
SMART SYSTEM

Dynamic Load Management

Dynamic Load Management (DLM) is a key component of GL Charge’s Home Solutions. DLM is a smart technology that dynamically adjusts the charging power of electric vehicles to match the available electricity in the home.
SIMPLE & INTUITIVE

RFID Authentication

RFID card authenticator is compact and secure access for protecting against unauthorised charging. Simply tap the RFID card on the reader and initiate a secure authentication process that grants access to the charging station.
SMART SYSTEM

MID Meter

Optimizing energy consumption requires comprehensive energy measurement. PublicBox charging stations are equipped with MID Meters for the most accurate energy measurement.
SIMPLE & INTUITIVE

Easy Acces

The new PublicBox is accessible from the front, making it the best solution for maintenance and installation, as well as allowing easier customisation when the charger is already in use.
CONNECTION

Connection Options

Lörem ipsum benade suregt europlada, antilungen av omyss att kyrktrappsbröllop. Fede valig. Ekostat vanar om ditivis fastän beseren till makroling fasam.
OPTION 1

Socket Connection

OPTION 2

Cable Connection

Scroll to explore
URBANBOX

Charger Details

40 kW
MID DC Meter
7” Display
Contact sales
Contact us
URBANBOX

Optional Add-ons

Charger stand
Optional
Personalization
Optional
URBANBOX

Technical Specifications

AC input
Input voltage
400 V a.c. +/-10%, 230 V a.c. +/-10% 3Ph+N
Input frequency
50 Hz (±10%) / 60 Hz (±10%)
Power factor
≥0.99 (Load 100%); ≥0.98 (Load 50%~100%)
DC input
Output power
40 kW
Input current Max cont. current at 198 Va.c. (230Va.c. -10%)
3x71A
Output current range
0-133 A
DC Charging protocol
DIN SPEC 70121 and optionally ISO15118-2 (Plug&Charge)
Output voltage range
150 V d.c. to 1000 V d.c.
Voltage stabilized accuracy
≤±0.5%
Efficiency Peak value
>96%
Operating/ambient temperature
-25° to 55° C (derating might apply under particular conditions)
Humidity
≤ 95% RH, without condensation
Pressure/Altitude
79 kPa~106 kPa/2000 mt
Cooling
Air cooling fans
According to European Standards
EN 61851-1, EN 61851-21 EN 61851-23
Treatment
Outside case stainless steel
Number of charging points
1 Plug CCS2
Cable
3 m or optional 5 m
Back-end protocol
OCPP 1.6j According to OCA (optionally OCPP 2.0.1)
RFID System
ISO/IEC 14443A: MIFARE Classic; MIFARE DESFire
Display
7’’ Display, operable under direct sunlight exposure
IP Grade
IP54 IEC 60529, IK10/IK8 for the screen area
RAL Paint
RAL 9016
Warranty
Warranty extension
Standard 2 years, with extension option (refer to T&Cs for further details)
