A VERSATILE AC CHARGING SOLUTION FOR MODERN HOMES

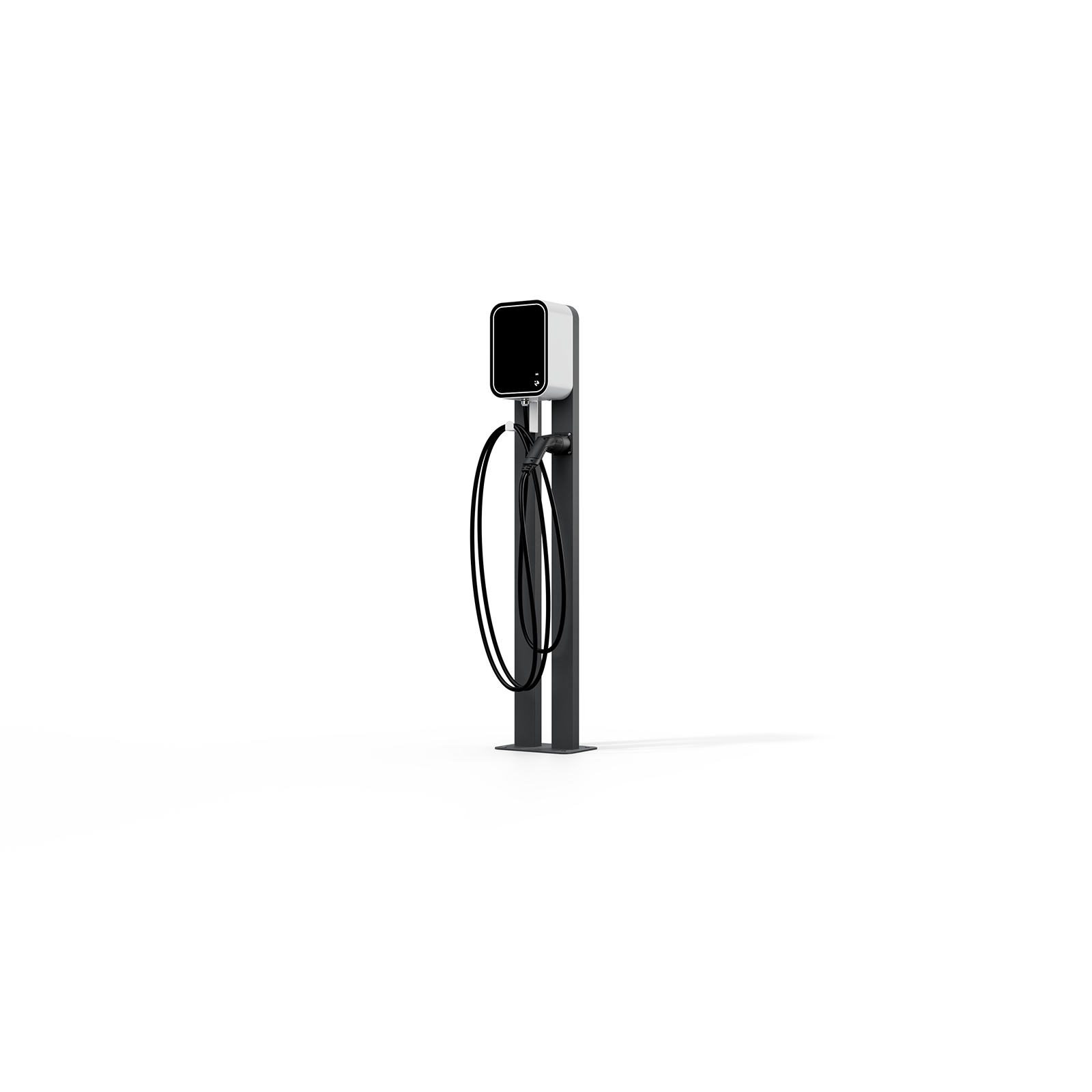

Iskraemeco GlowBox

The best-selling charging station for home use. It is a charging station that dynamically adapts and charges with the maximum power available at that moment. It is made of protected  steel and has a tempered glass front. Possibility of installation on a wall or a stand.
GlowBox 11 kW
GlowBox 22 kW
Contact Sales
Charge any car
Convenient and efficient charging for any car.
Weather proof
Resistant to harsh conditions.
Up to 22kW
It delivers a powerful charge of up to 22kW
Tried & tested
Charge with ease and confidence.
EASY & CONVENIENT

Main Features

Get a personalized quote

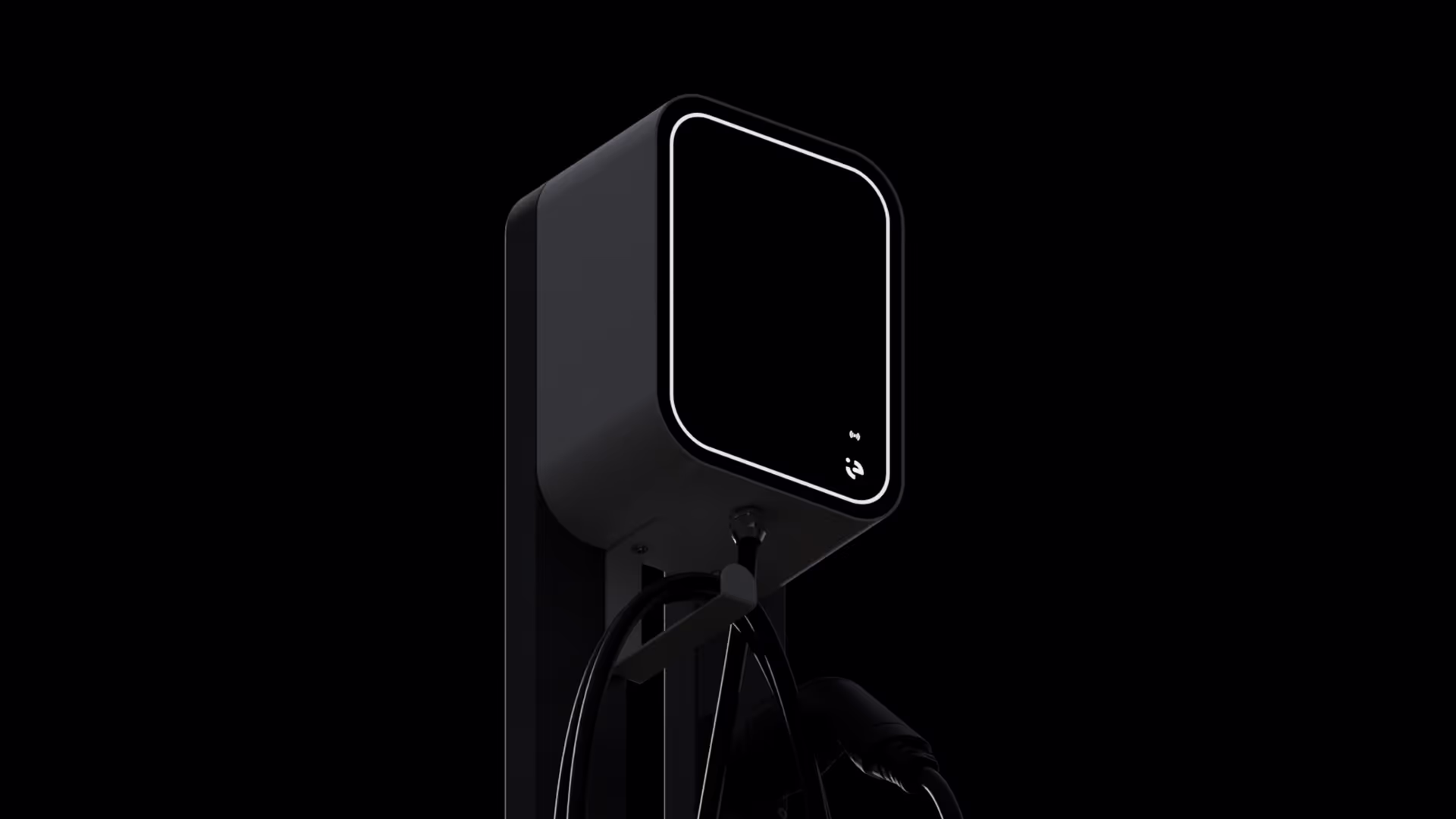

LED Housing
Integrated LED lighting enhances the modern look.
Plug & Play
Charge your car while you focus on other things.

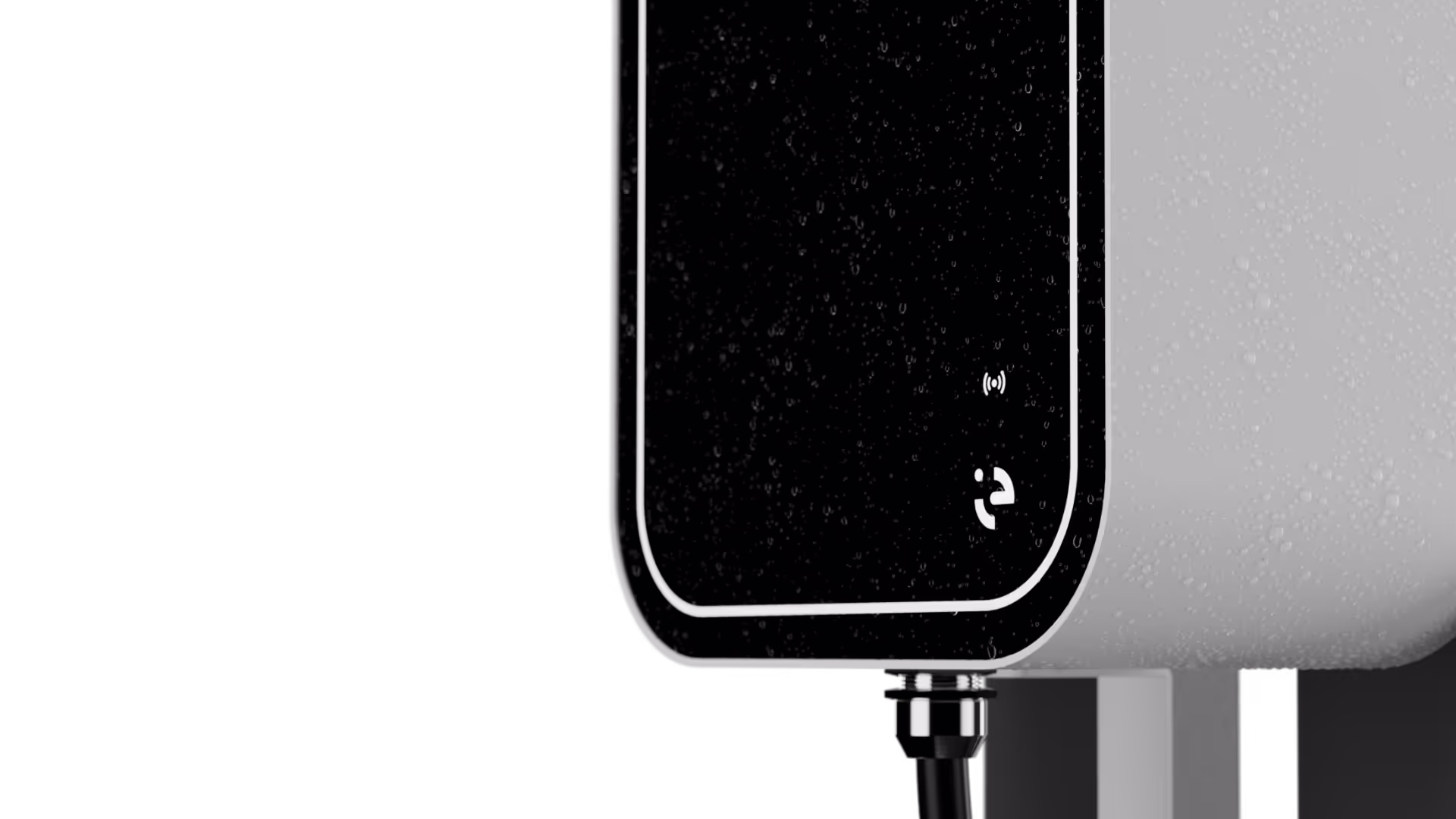

Weather proof
Resistant to the most extreme weather conditions
Dynamic load management
Charge your car without thinking about excessive usage.
Scroll to explore
INSTALLMENTS

Installation Options

Lörem ipsum benade suregt europlada, antilungen av omyss att kyrktrappsbröllop. Fede valig. Ekostat vanar om ditivis fastän beseren till makroling fasam.

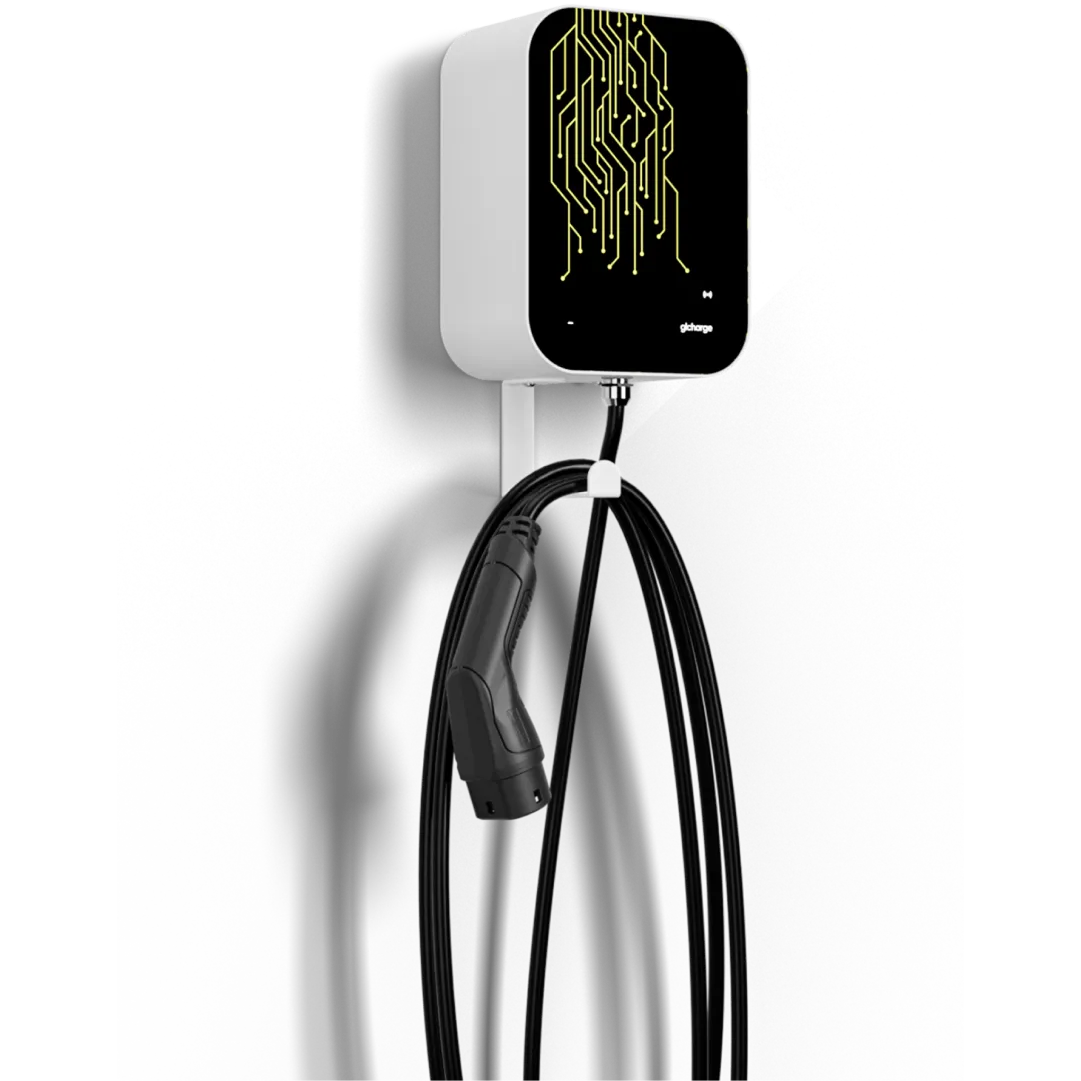

OPTION 1

Wall mounted

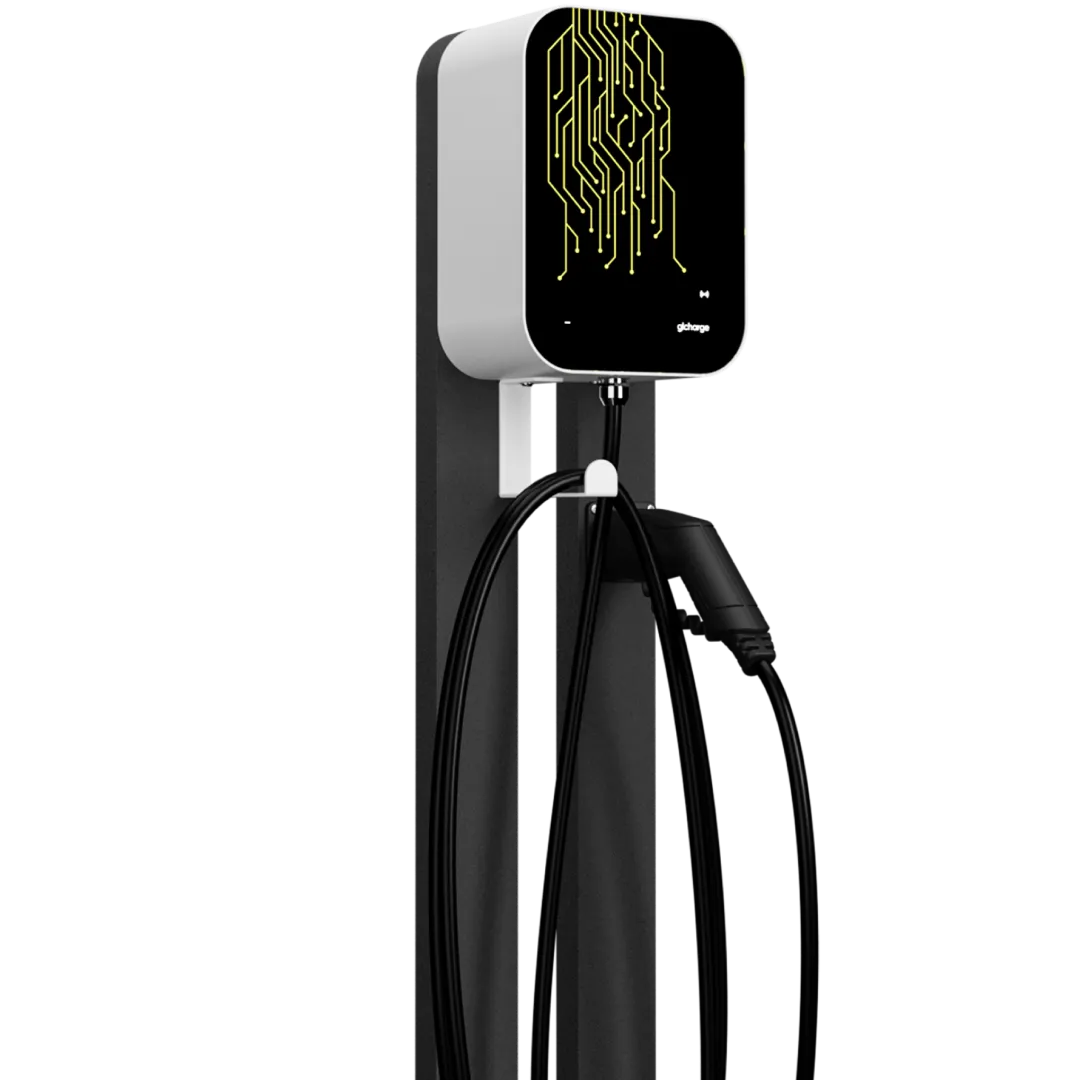

OPTION 2

Mounting base

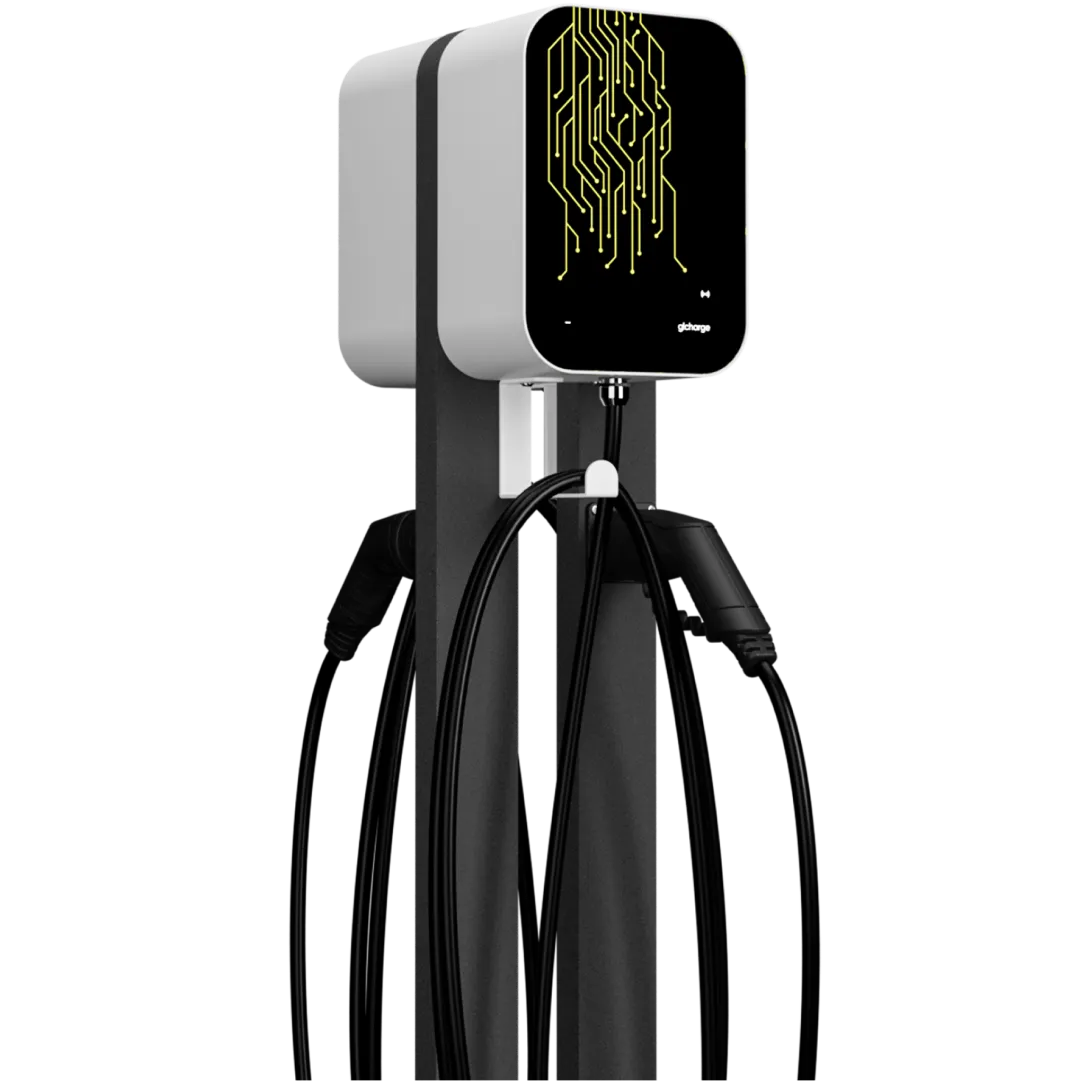

OPTION 3

Double base

HOME CHARGING

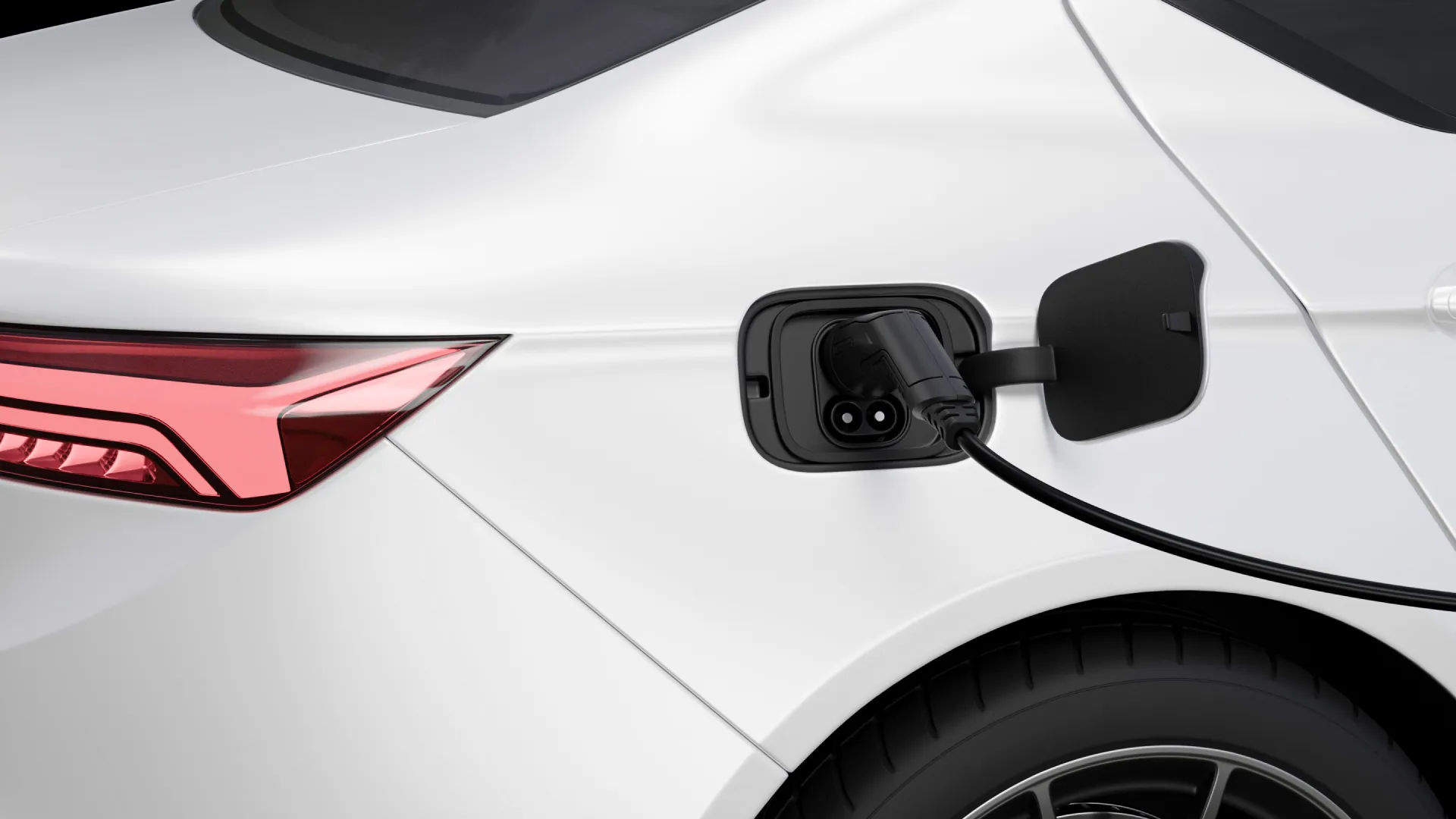

Plug & Play

Simplify the charging experience with our plug-and-play charging station. Designed for ultimate convenience, this user-friendly solution ensures seamless charging.
SMART SYSTEM

Dynamic Load Management

Dynamic Load Management (DLM) is a key component of GL Charge’s Home Solutions. DLM is a smart technology that dynamically adjusts the charging power of electric vehicles to match the available electricity in the home.
Scroll to explore
BUSINESS CHARGING

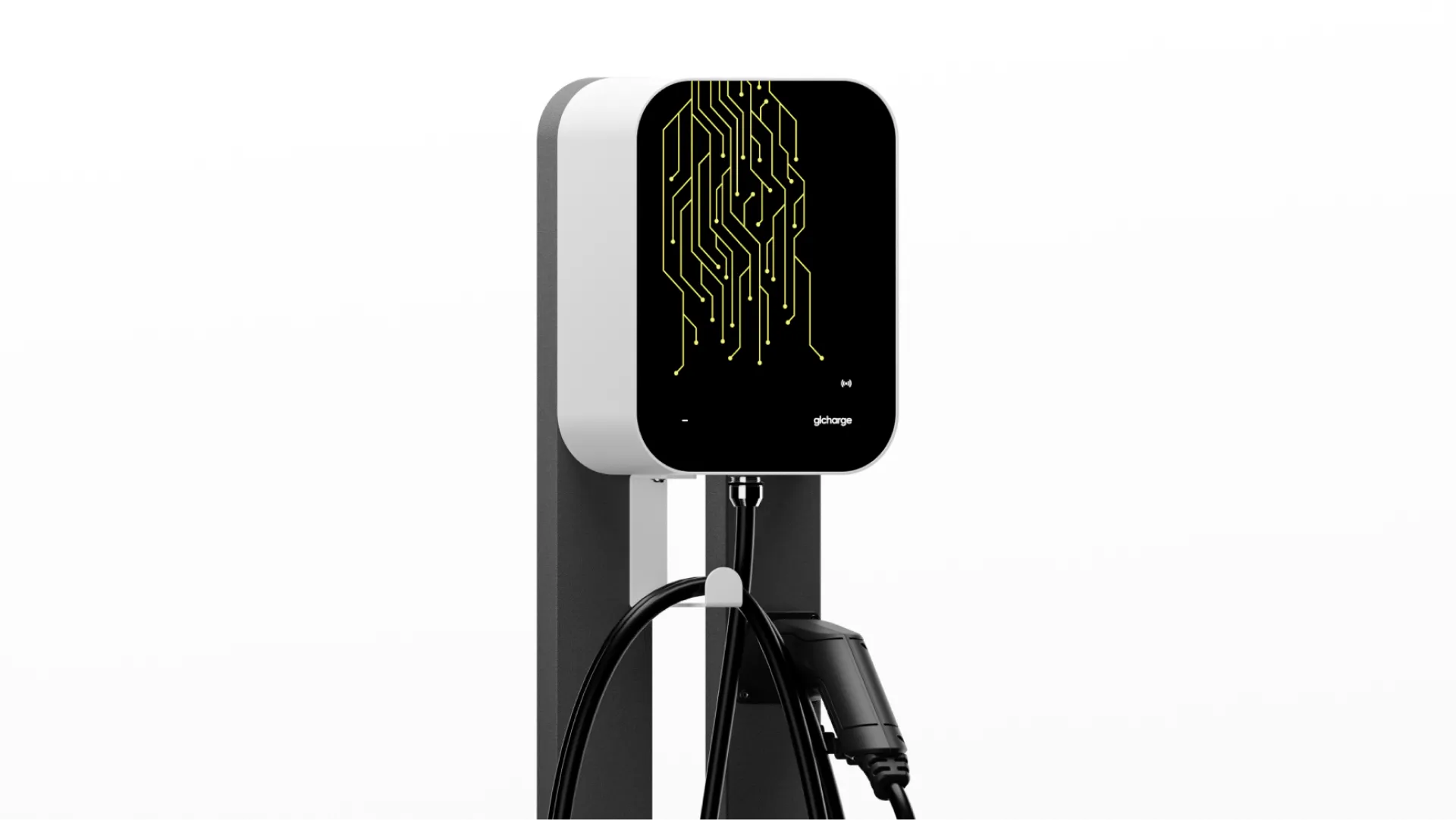

Glowbox Platinum

For public and commercial applications, we have developed GlowBox Platinum. It includes OCPP smart connectivity, customisation, load management and is fitted with an internal MID meter.
YOUR BRAND

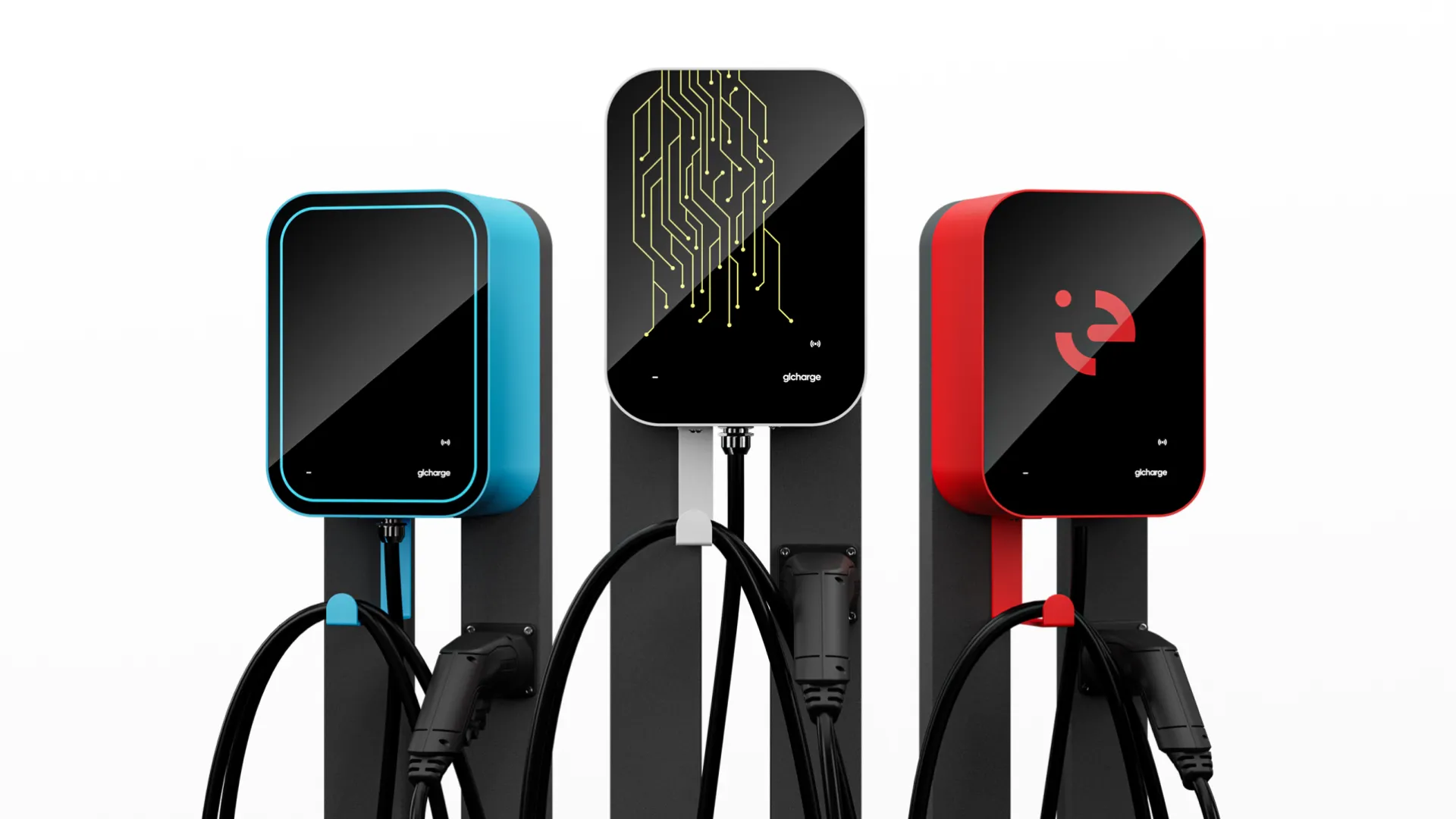

Whitelabel

Personalize the charging station - add your company logo to the front glass and choose a colour that reflects your brand.
SIMPLE & INTUITIVE

RFID Authentication

RFID card authenticator is a secure access for protecting against unauthorised charging. Simply tap the RFID card on the reader and initiate a secure authentication process that grants access to the charging station.
Scroll to explore
TECHNICAL DETAILS

Configurations

Lörem ipsum benade suregt europlada, antilungen av omyss att kyrktrappsbröllop. Fede valig.

Silver

Simple charging stations that can be installed wherever there is enough power to charge a car.
Contact Sales
Modbus RTU communication
RFID (optional)

Gold

The best-selling charging station for home use. It dynamically charges with max power available.
Contact Sales
Load management
RFID (optional)

Platinum

Placed at business facilities where customers want to manage and monitor the charging station.
Contact Sales
OCPP via 4G and ETH
RFID (included)
Load management (optional)
GLOWBOX

Charger Details

Up to 22 kW
Dynamic load management
Personalization
Contact us
Contact Us
GLOWBOX

Optional Add-ons

Dynamic load management
Optional
Charging station stand
Optional
Personalization/Branding
Optional
7m charging cable
Optional
Anchor for stand
Optional
GLOWBOX

Technical Specifications

Standards
CE (2014/30/EU, 2014/35/EU, IEC 61851-21-2:2021, IEC 61851-1:2017)
Material
Steel protected by powdercoated paint, tempered glass
HMI
Status LED
Protection
RCM 6mA protection built in
RFID compatibility
ISO/IEC 14443A: MIFARE Classic; MIFARE DESFire
Measuring
Current measuring via current clamps
Protection level
IP 55 / IK 10
Paint RAL
RAL 9016
Input
Voltage
1ph 230V  (+/- 10%) / 3ph 400V  (+/- 10%)
Frequency
50 Hz (±10%) / 60 Hz (±10%)
Supported network
TT, TN, IT
Power factor
≥0.99
Output
Protocol for communication with EV
IEC61851-1 Mode 3 (upgradable to ISO 15118)
Output power
Up to 22 kW
Max output current
Up to 32A
Operating conditions
Operating/ambient temperature
-25°C to 55°C
Humidity
Up to 95% relative humidity, non-condensing
Pressure and altitude
76 kPa~106 kPa/2000 m
