DC WALL MOUNT CHARGING STATION

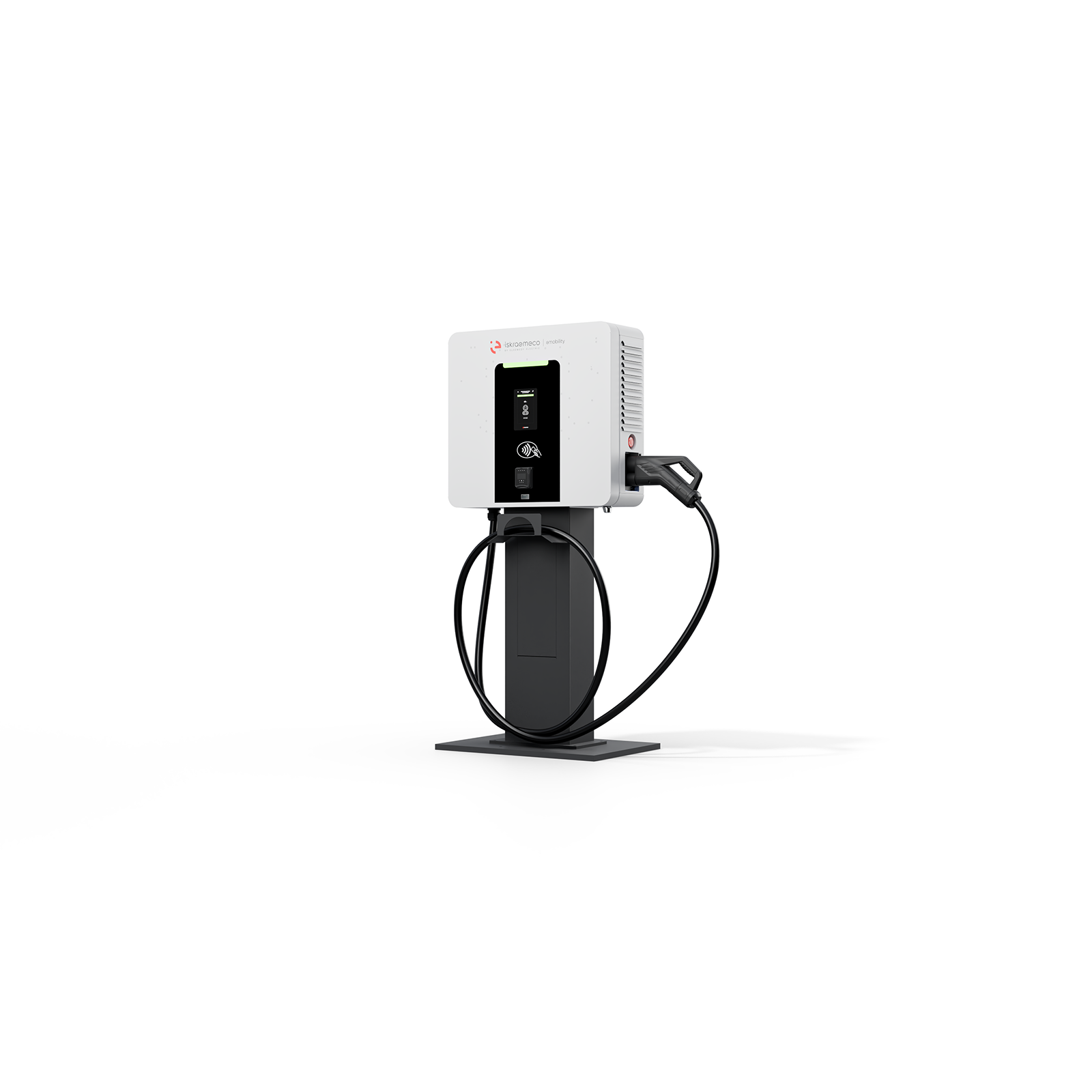

Introducing iWB40

The iWB40 is a 40kW all-in-one DC charging station with a 7’’ sunlight-readable display, single CCS2 connector, and MID-certified DC metering.
Contact Sales
Charge any car
Convenient and efficient charging for any car.
Weather proof
Resistant to harsh conditions.
Up to 40kW
Delivers up to 40kW for quick charging.
Tried & tested
Charge with ease and confidence.
EFFICIENT & COMPACT

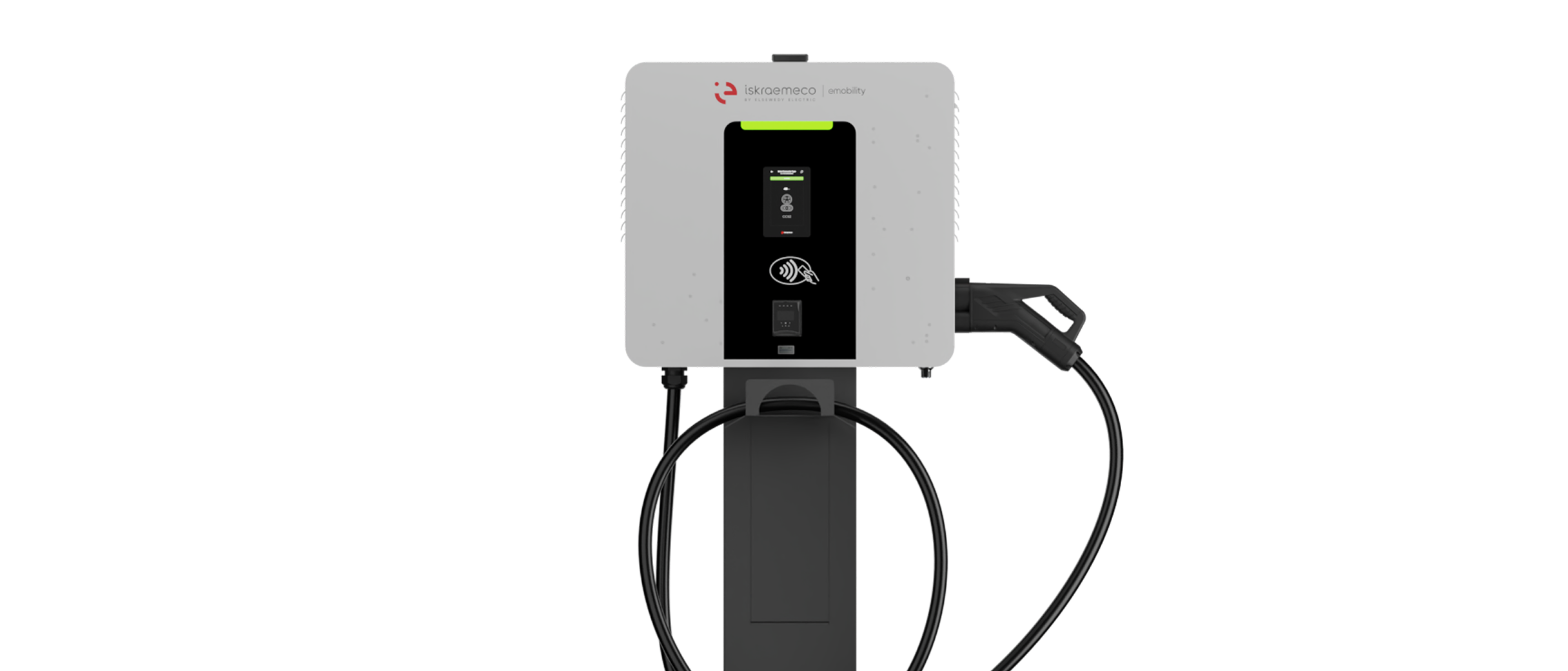

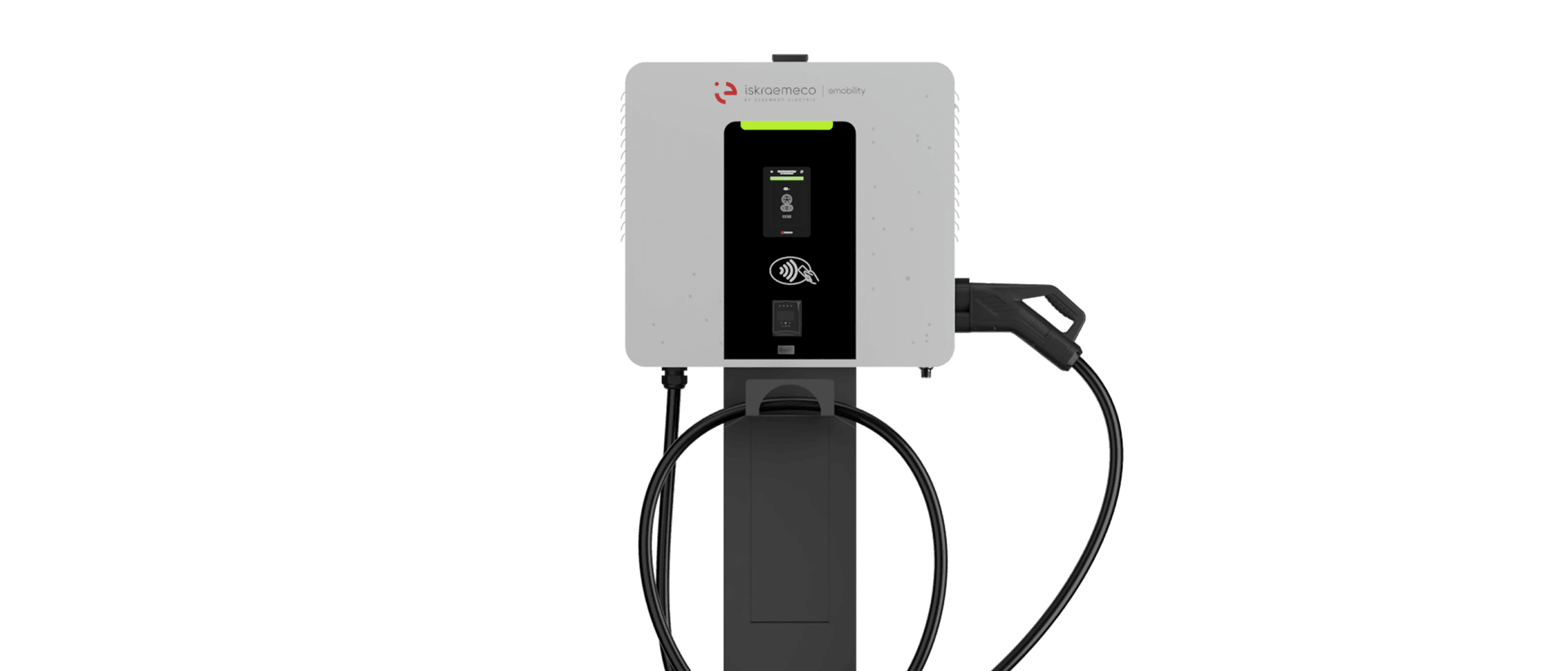

About iWB40

The iWB40 is a robust 40kW all-in-one DC charging station, equipped with a 7-inch sunlight-readable display and a single CCS2 connector, complemented by MID-certified DC metering. Engineered for both indoor and outdoor applications (IP54, IK10), this station boasts advanced remote connectivity options including 2G, 3G, 4G, and Ethernet. It is fully compatible with OCPP standards and features an efficient air cooling system to ensure optimal performance. Additionally, there is an option for customized branding to enhance your business identity.

Contact sales
INSTALLMENTS

Installation Options

Lörem ipsum benade suregt europlada, antilungen av omyss att kyrktrappsbröllop. Fede valig. Ekostat vanar om ditivis fastän beseren till makroling fasam.
OPTION 1

Next to wall

OPTION 2

Stand-alone

YOUR BRAND

Whitelabel

A personalisation option, where we make a custom front glass printing of the charging station according to the brand of your company.
SMART SYSTEM

Dynamic Load Management

Dynamic Load Management (DLM) is a key component of GL Charge’s Home Solutions. DLM is a smart technology that dynamically adjusts the charging power of electric vehicles to match the available electricity in the home.
SIMPLE & INTUITIVE

RFID Authentication

RFID card authenticator is compact and secure access for protecting against unauthorised charging. Simply tap the RFID card on the reader and initiate a secure authentication process that grants access to the charging station.
SMART SYSTEM

MID Meter

Optimizing energy consumption requires comprehensive energy measurement. PublicBox charging stations are equipped with MID Meters for the most accurate energy measurement.
SIMPLE & INTUITIVE

Easy Acces

The new PublicBox is accessible from the front, making it the best solution for maintenance and installation, as well as allowing easier customisation when the charger is already in use.
CONNECTION

Connection Options

Lörem ipsum benade suregt europlada, antilungen av omyss att kyrktrappsbröllop. Fede valig. Ekostat vanar om ditivis fastän beseren till makroling fasam.
OPTION 1

Socket Connection

OPTION 2

Cable Connection

Scroll to explore
iWB40

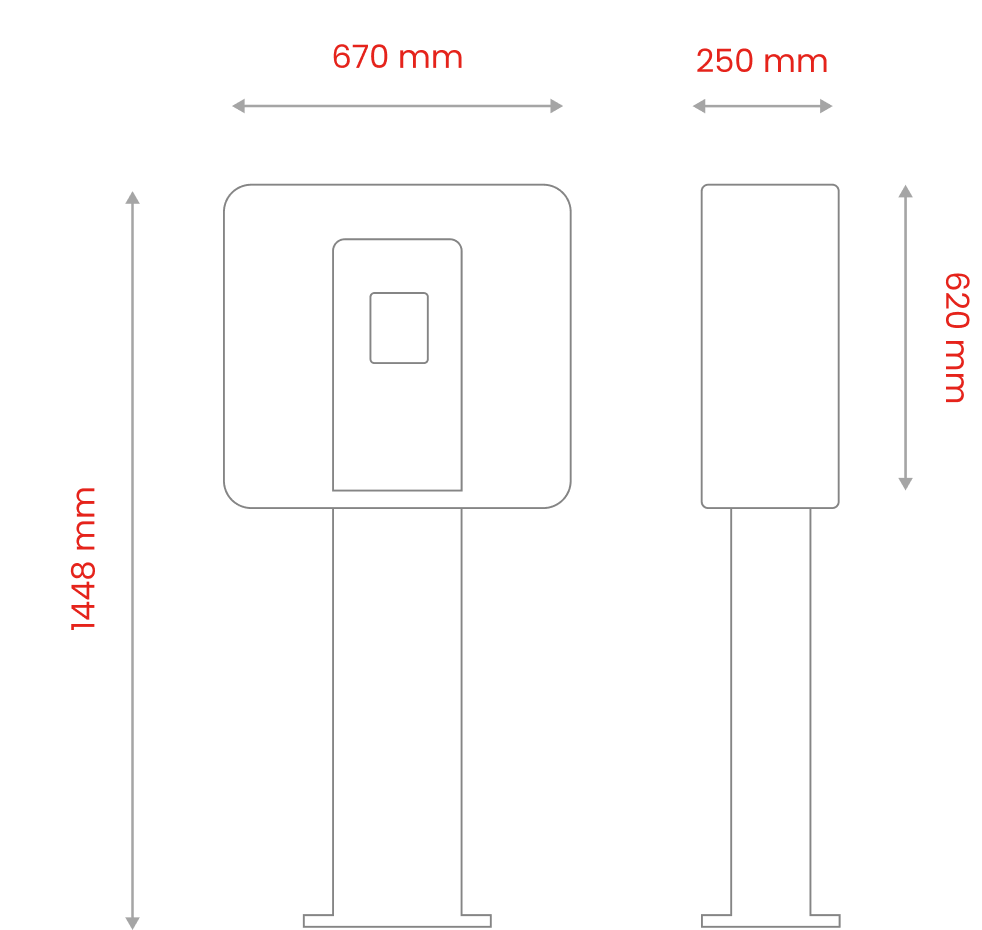

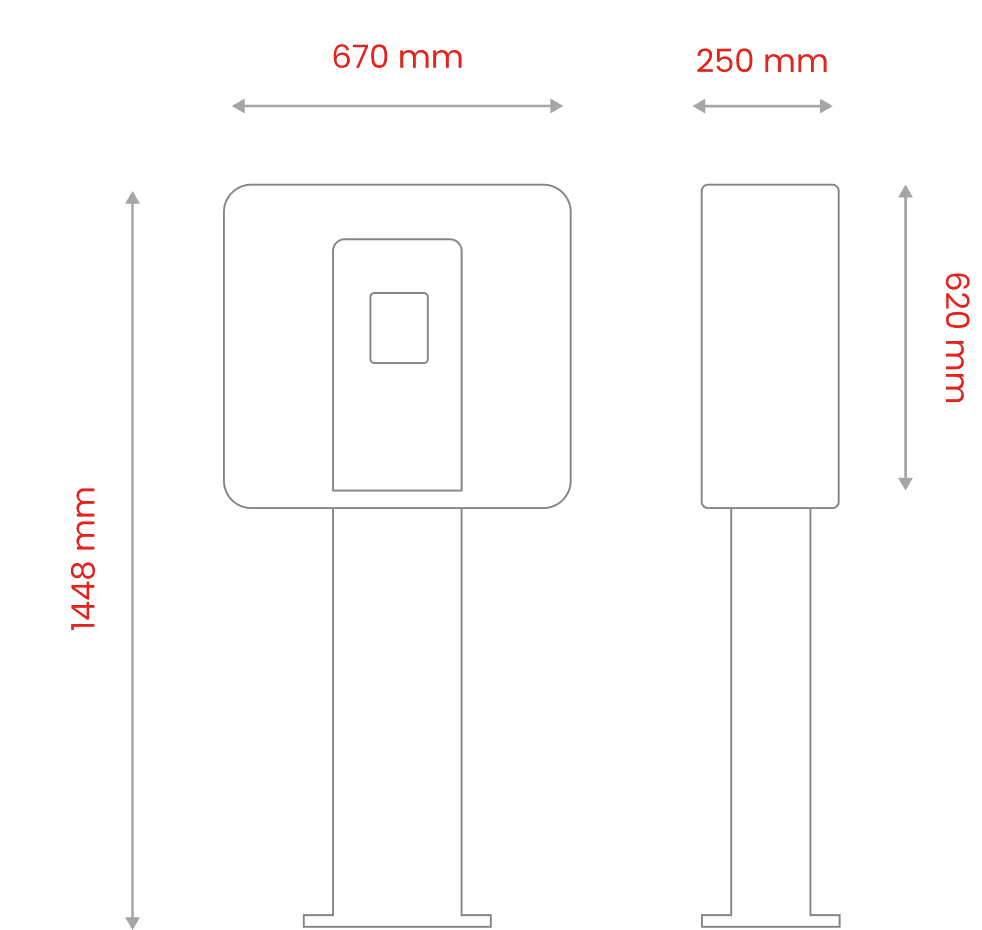

Charger Details

40 kW
MID DC Meter
7” Display
Contact sales
Contact us
iWB40

Optional Add-ons

Charger stand
Optional
Personalization/Branding
Optional
iWB40

Technical Specifications

AC input
Input current
3x 75 A
Input voltage
400 Vac (340 … 440 Vac), three-phase five-wire system
Input frequency
50 Hz (±5%) / 60 Hz (±5%)
Power factor
0.99 (Load 100%); ≥0.98 (load 50%-100%)
Network type
TN-C | TN-S | TN-C-S | TT
DC output
Output power @ 1000 Vdc
40 kW
Output current range
0 – 133 A
Output voltage range
150 Vdc to 1000 Vdc
Voltage stabilized accuracy
≤+-0.5%
Efficiency Peak
>97%
Operating/ambient temperature
-25 ºC to +55 ºC (derating might apply under particular conditions)
Humidity
≤ 95% RH, without condensation
Pressure / altitude
79 kPa-106 kPa / 2000 m
Cooling
Air cooling fans
European Standards
EN 61851-1, EN 61851-21, EN 61851-23, CE
Material
Structural steel
IP Grade
IP54, IK10 / IK8 (Screen)
Weight
60 kg
Number of charging points
1 Plug CCS2
Cable Length
3.5 m / 5 m
Protocol
Mode 4 ISO 15118-2 (Plug&Charge, optional)
DC Charging Protocol
Mode 4 (IEC 61851-23/24); Combo-2 (DIN 10121)
Back-end Protocol
OCPP 1.6j According to OCA (optionally OCPP 2.0.1)
RFID System
ISO/IEC 14443A: MIFARE Classic; MIFARE DESFire
Display
7’’ Display, operable under direct sunlight exposure
