HIGH-POWER DC CHARGING STATION

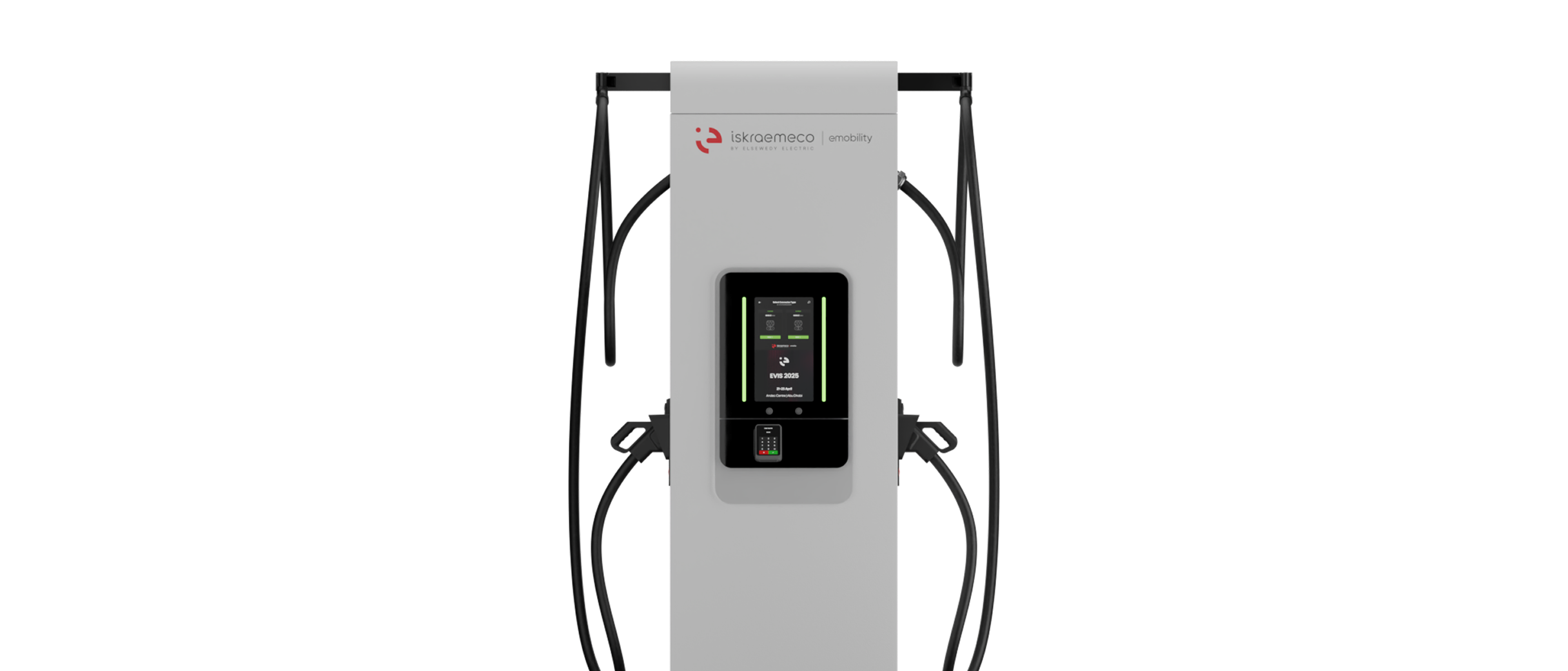

Introducing iHPC400

The iHPC400 is an all-in-one DC fast charging station delivering 240 kW, 320 kW, or 400 kW of power. Designed for both indoor and outdoor installations.
Contact Sales
Charge any car
Convenient and efficient charging for any car.
Weather proof
Resistant to harsh conditions.
Dual power
Charge two cars simultaneously.
Tried & tested
Charge with ease and confidence.
FAST, EFFICIENT & SCALABLE

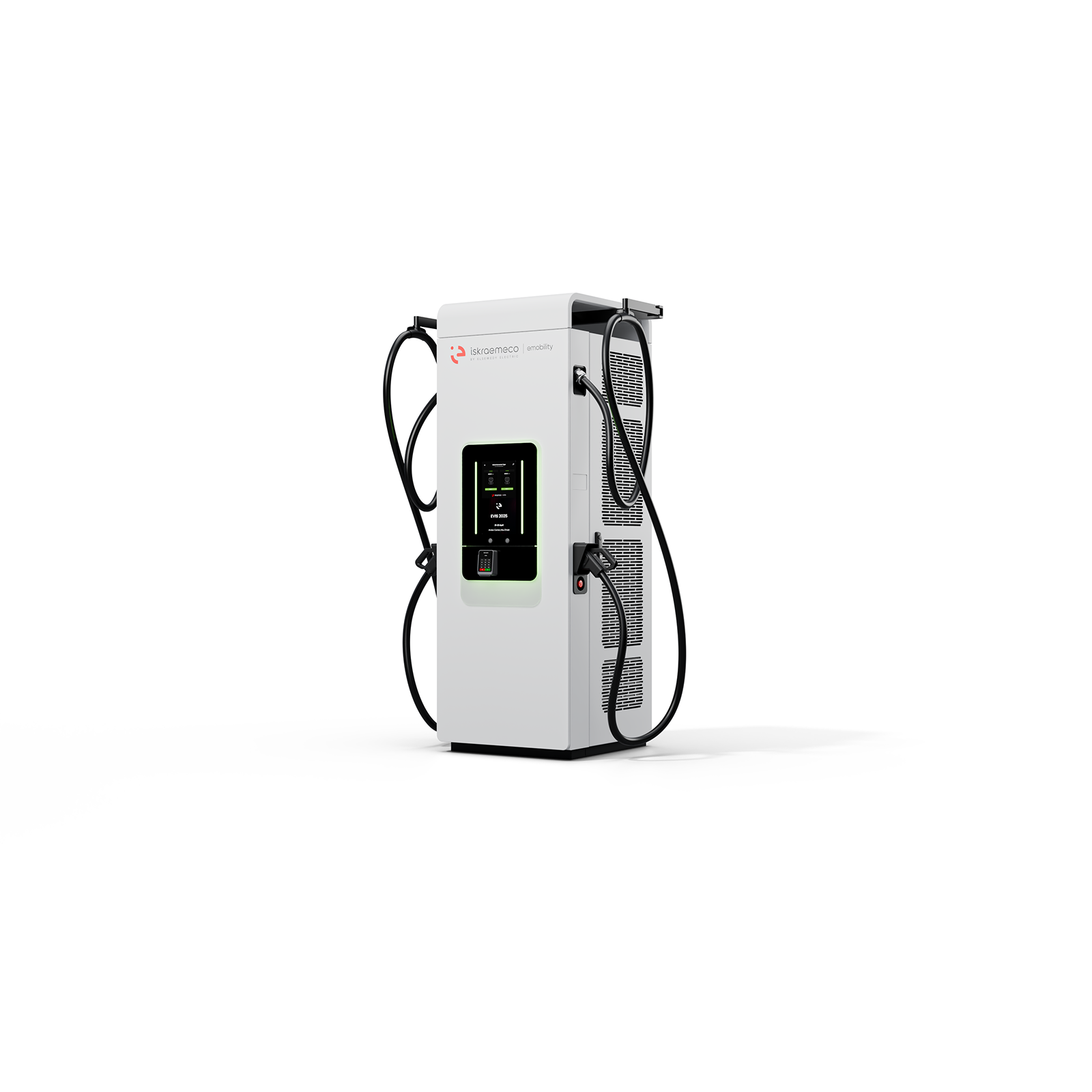

About iHPC400

The iHPC400 represents a cutting-edge solution in the realm of electric vehicle charging, offering an impressive range of power outputs at 240 kW, 320 kW, or 400 kW. This versatile charging station is meticulously engineered for seamless integration in both indoor and outdoor environments. It boasts a 15-inch display that is fully readable in direct sunlight, ensuring optimal usability in various lighting conditions. Additionally, the iHPC400 is equipped with dual CCS2 connectors and features MID-certified DC metering, providing precise energy measurement for enhanced operational efficiency.

Contact sales
INSTALLMENTS

Installation Options

Lörem ipsum benade suregt europlada, antilungen av omyss att kyrktrappsbröllop. Fede valig. Ekostat vanar om ditivis fastän beseren till makroling fasam.
OPTION 1

Next to wall

OPTION 2

Stand-alone

YOUR BRAND

Whitelabel

A personalisation option, where we make a custom front glass printing of the charging station according to the brand of your company.
SMART SYSTEM

Dynamic Load Management

Dynamic Load Management (DLM) is a key component of GL Charge’s Home Solutions. DLM is a smart technology that dynamically adjusts the charging power of electric vehicles to match the available electricity in the home.
SIMPLE & INTUITIVE

RFID Authentication

RFID card authenticator is compact and secure access for protecting against unauthorised charging. Simply tap the RFID card on the reader and initiate a secure authentication process that grants access to the charging station.
SMART SYSTEM

MID Meter

Optimizing energy consumption requires comprehensive energy measurement. PublicBox charging stations are equipped with MID Meters for the most accurate energy measurement.
SIMPLE & INTUITIVE

Easy Acces

The new PublicBox is accessible from the front, making it the best solution for maintenance and installation, as well as allowing easier customisation when the charger is already in use.
CONNECTION

Connection Options

Lörem ipsum benade suregt europlada, antilungen av omyss att kyrktrappsbröllop. Fede valig. Ekostat vanar om ditivis fastän beseren till makroling fasam.
OPTION 1

Socket Connection

OPTION 2

Cable Connection

Scroll to explore

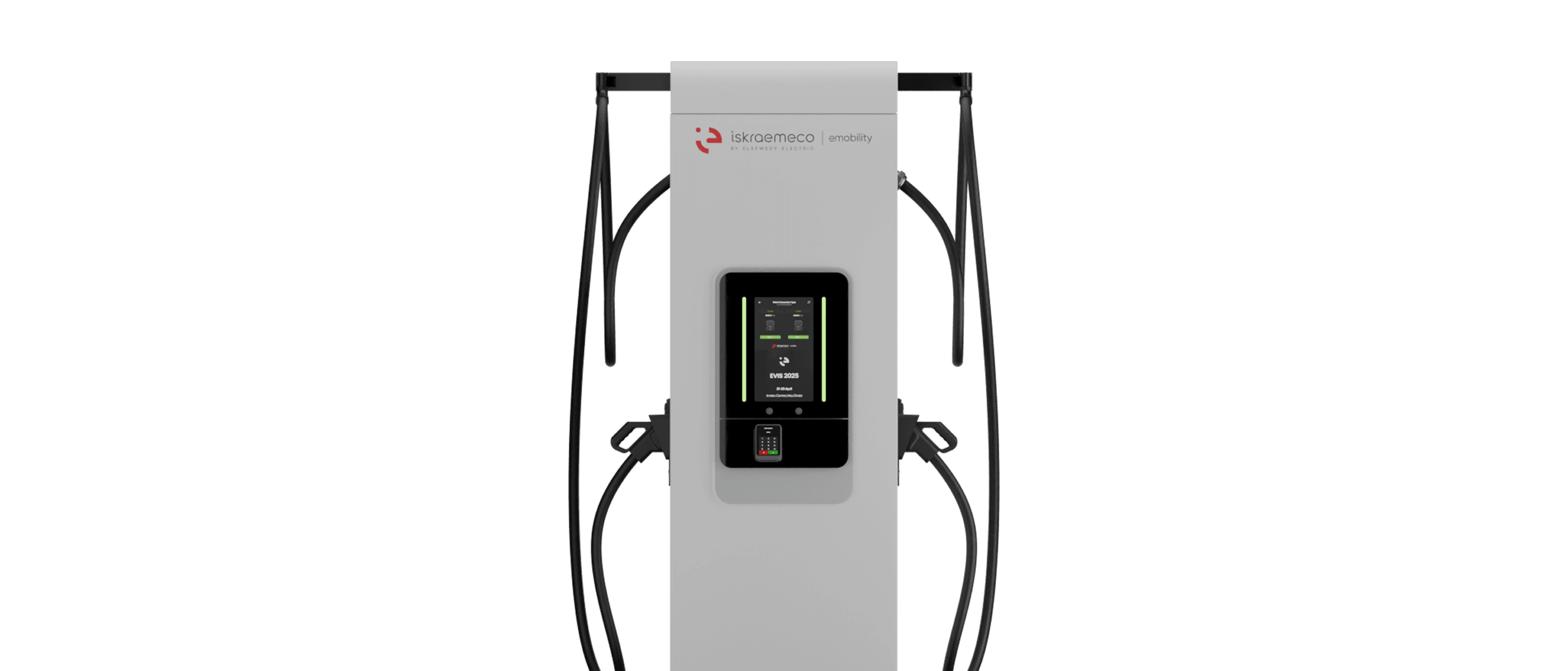

iHPC400

Charger Details

240/320/400 kW
MID DC Meter
15” Display
Contact sales
Contact us
iHPC400

Optional Add-ons

Cable management system
Optional
Dual backend connection
Optional
Personalization/Branding
Optional
iHPC400

Technical Specifications

AC input
Input current
3x 450 A | 3x 600 A | 3x 750 A
Input voltage
400 Vac (340 … 440 Vac), three-phase five-wire system
Input frequency
50 Hz (±5%) / 60 Hz (±5%)
Power factor
0.99 (Load 100%); ≥0.98 (load 50%-100%)
Network type
TN-C | TN-S | TN-C-S | TT
DC output
Output power @ 1000 Vdc
240 kW | 320 kW | 400 kW
Max output current
500 A (cooled), or 350 A (Boost till 400 A, derating might apply under particular conditions)
Output voltage range
150 Vdc to 1000 Vdc
Voltage stabilized accuracy
≤+-0.5%
Efficiency Peak
>97%
Operating/ambient temperature
-25 ºC to +55 ºC (derating might apply under particular conditions)
Humidity
≤ 95% RH, without condensation
Pressure / altitude
79 kPa-106 kPa / 2000 m
Cooling
Air cooling fans
European Standards
EN 61851-1, EN 61851-21, EN 61851-23, CE
Material
Structural steel
IP Grade
IP54, IK10 / IK8 (Screen)
Weight
271 kg | 303 kg | 335 kg
Number of charging points
2 Plug CCS2
Cable Length
3.5 m / 5 m
Protocol
Mode 4 ISO 15118-2 (Plug&Charge, optional)
DC Charging Protocol
Mode 4 (IEC 61851-23/24); Combo-2 (DIN 10121)
Back-end Protocol
OCPP 1.6j According to OCA (optionally OCPP 2.0.1)
RFID System
ISO/IEC 14443A: MIFARE Classic; MIFARE DESFire
Display
15’’ Display, operable under direct sunlight exposure
